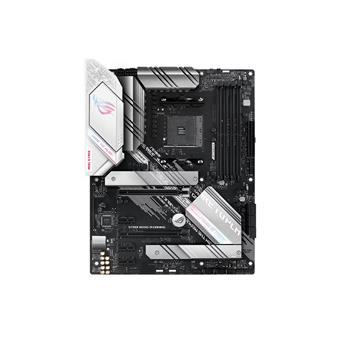

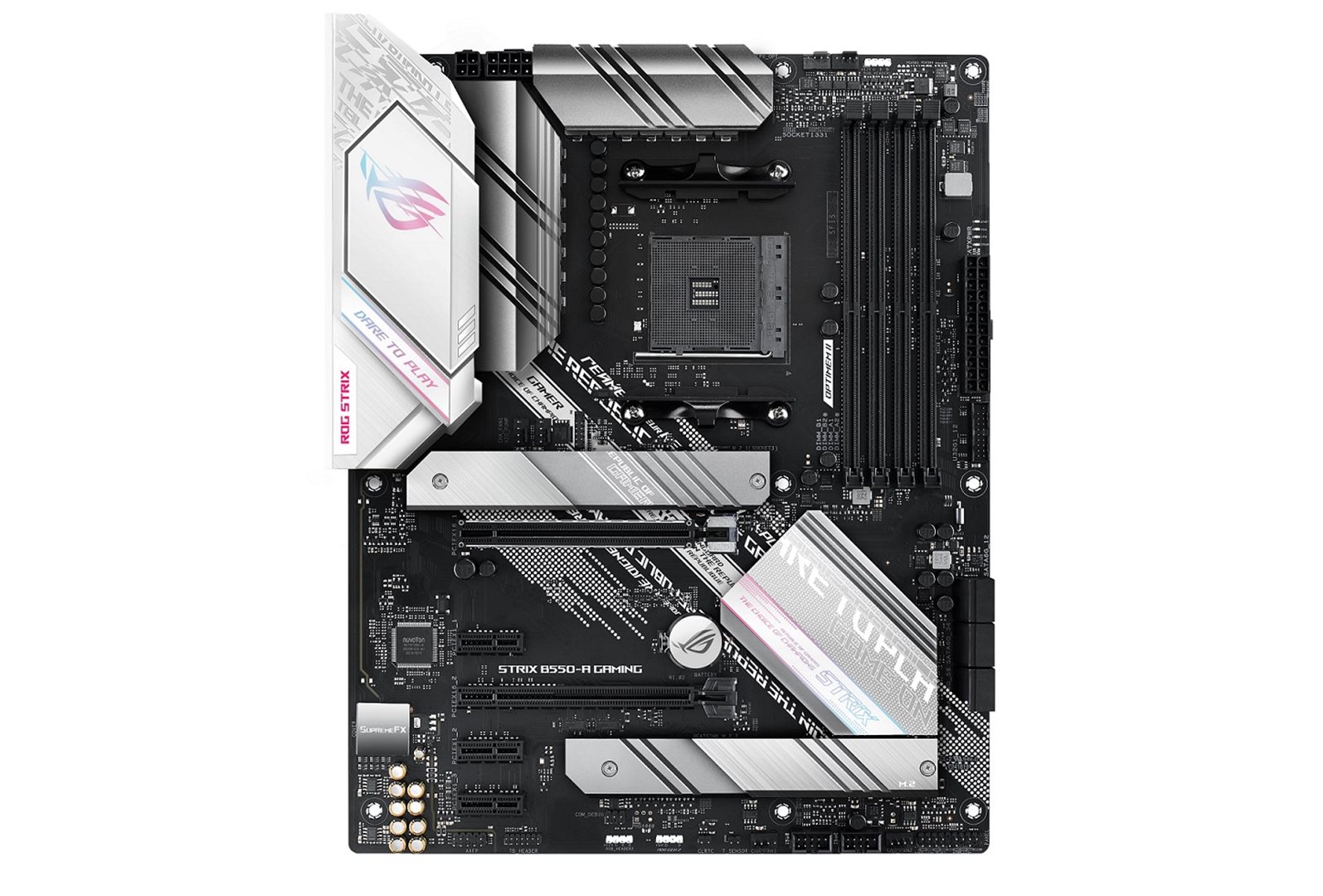

ASUS ROG STRIX B550-A GAMING/ AM4/ ATX

Chipset: AMD B550

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pre procesory: AMD Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 DIMM
Podpora pre pamäte:

• 5100(OC)/4800(OC)/4600(OC)/4400(OC)/4133(OC)/4000(OC)/3866(OC)/3600(OC)/3466(OC)/3466(OC) 2800/2666/2400/2133 MHz Un-buffered Memory
• 4600(OC)/4400(OC)/4133(OC)/4000(OC)/3866(OC)/3600(OC)/3466(OC)/3200/3000/2800/2662/24 buffered Memory

Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4

• Dual Channel Memory Architecture
• ECC Memory (ECC mode) na podporu varies by CPU.

Grafické výstupy:

• Integrated Graphics Processor (na základe procesora)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta:

• ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

Sieťová karta:

• Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard)

Rozširujúce sloty:

• 3x PCIe 3.0 x1
• 1x PCIe 4.0 x16 (x16 mode)
• 1x PCIe 3.0 x16 (x16 mode)

RAID radič: 0, 1, 10

SATA:

• 6x SATA 6Gb/s

M.2:

• 1x M.2 Socket 1 s kľúčom M, typ 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1x M.2 Socket 2 s kľúčom M, typ 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:

• zadné USB porty (celkom 8 )
• 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
• 4x USB 3.2 Gen 1
• 2x USB 2.0
• predné USB porty (celkom 6 )
• 2x USB 3.2 Gen 1 port(s)
• 4x USB 2.0 port(s)

Interné porty:

• 1x M.2 Socket 1 s kľúčom M, typ 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1x M.2 Socket 2 s kľúčom M, typ 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 1x Thunderbolt header(s)
• 1x CPU Fan connector(s)
• 1x CPU OPT Fan connector(s)
• 3x Chassis Fan connector(s)
• 1x AIO_PUMP connector
• 1x AAFP connector
• 2x Aura RGB Strip Header(s)
• 1x Addressable Gen 2 header(s)
• 2x USB 2.0 konektor(s) support(s) additional 4 USB 2.0 port(s)
• 6x SATA 6Gb/s connector(s)
• 1x 24-pin EATX Power connector(s)
• 1x 8-pin ATX 12V Power connector(s)
• 1x 4-pin ATX 12V Power connector(s)
• 1x System panel(s)
• 1x Thermal sensor connector(s)
• 1x Clear CMOS jumper(s)

Externé porty:

• 1x BIOS FlashBack™ Button(s)
• 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
• 1x Intel® I225-V 2.5Gb Ethernet
• 4x USB 3.2 Gen 1
• 1x DisplayPort
• 1x HDMI
• 2x USB 2.0
• 1x Optical S/PDIF out
• 5x Gold-plated audio jacks

Obsah balenia:

• 1 x M.2 SSD screw package(s)
• 1x M.2 Rubber Package(s)
• User´s manual
• 4x SATA 6Gb/s cable(s)
• 1x Supporting DVD
• 1x ROG Strix stickers
• 1x Cable ties pack(s)
• 1x Extension cable for Addressable LED
• 1x ROG Thank you card

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
