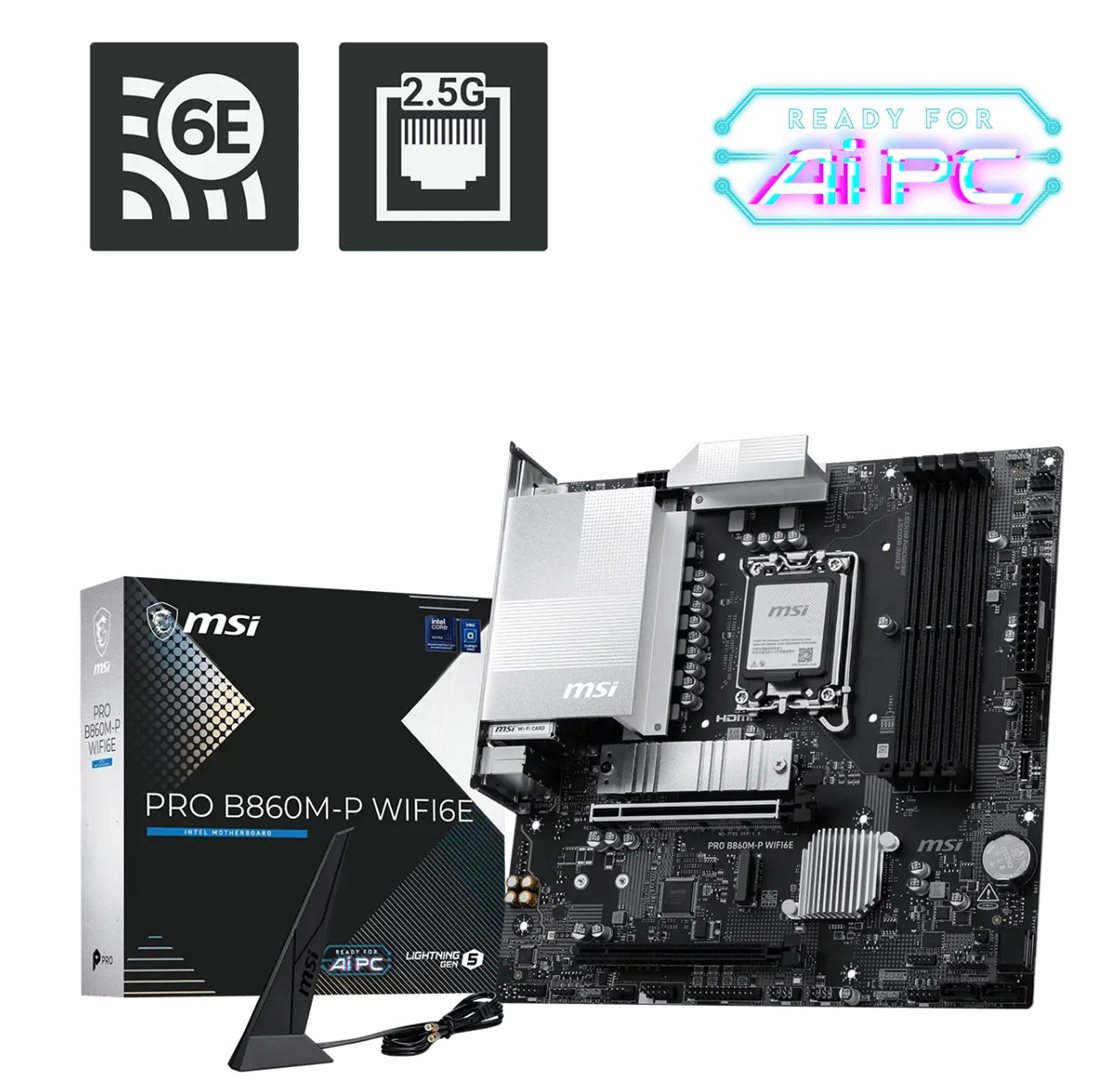

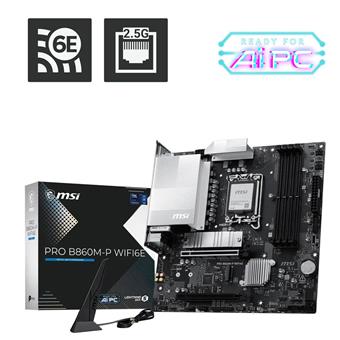

MSI PRE B860M-P WIFI6E

MSI PRE B860M-P WIFI6E

Chipset: INTEL B860
Rozmerový formát: mATX 243.84mmx243.84mm
Podpora pre procesory: Supports Intel® Core™ Ultra Processors (Series 2)
Pätica procesora: LGA 1851

Pamäť:

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Max. overclocking:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
• Supports Intel® POR Speed ??and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

Grafické porty:
1x HDMI

• Support HDMI™ 2.1 port s TMDS, maximum resolution of 4K 60Hz

2x DisplayPort

• Support DisplayPort 1.4 port s HBR2, maximum resolution of 4K 60Hz

1x VGA

• Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Zvuková karta:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Ethernet: Realtek 8125 2.5Gbps LAN
WLAN + Bluetooth: Wi-Fi 6E

• The Wireless module je preinštalovaný v M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) až 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3**, FIPS, FISMA

Rozširujúce sloty:
2x PCI-E x16 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

RAID radič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný priestor:
2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

USB:
Zadné USB

• 2x USB 2.0
• 3x USB 5Gbps Type A

Predné USB

• 4x USB 2.0
• 2x USB 5Gbps Type A
• 1x USB 5Gbps Type C

Interné porty:

Napájanie

• 1× Power Connector (ATX_PWR)
• 1× Power Connector (CPU_PWR)
• 1× CPU Fan
• 1× Combo Fan (Pump_Sys Fan)
• 2× System Fan

USB

• 4× USB 2.0 ports
• 2× USB 5Gbps Type-A ports
• 1× USB 5Gbps Type-C port

Ostatné

• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 1× Printer Port (JLPT)
• 1× COM Port (JCOM)
• 3× Addressable V2 RGB LED konektory (JARGB_V2)
• 1× RGB LED connector (JRGB)
• 1× TPM pin header (TPM 2.0)

Porty na zadnom paneli:

• DisplayPort
• VGA
• USB 2.0
• USB 5Gbps Type-A
• 2.5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
• HDMI™
• DisplayPort
• Clear CMOS Button
• USB 5Gbps Type-A

OS: Windows 11 64-bit
